Layout
Extraction

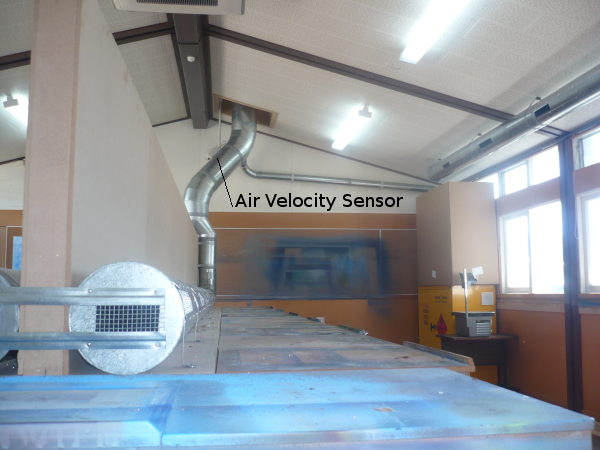

Below is an image showing the location of the extract velocity sensor.
The extract fan is mounted in a weather proof cabinet on the roof.
Make Up Air

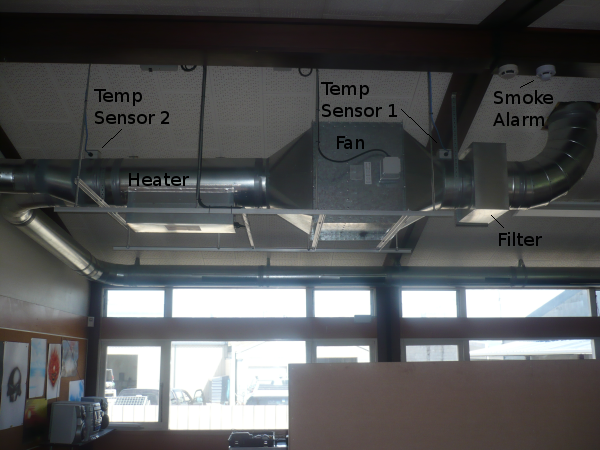

The image below shows the location of all the other field components in
the system except the make up air velocity sensor, which is mounted on
the roof, near the first 90 degree bend.
